FFP01-3C9-D24-V-7080-PHD
- SKU
- FFP01-3C9-D24-V-7080-PHD
$115.00
Usually Ships Within: 1-3 Days feel free to contact us to confirm.
ask about our leads times? click here to chat.
ask about our leads times? click here to chat.
Description / FFP01-3C9-D24-V-7080-PHD

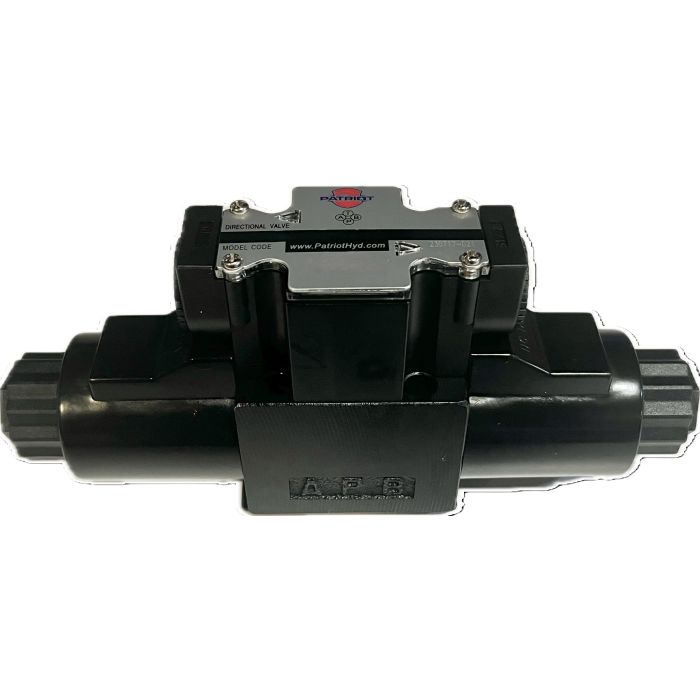

Introducing the FFP01-3C9-D24-V-7080-PHD, a premium Directional Control Valve optimized for D03 systems. This valve features four-way, three-position functionality with a tank port blocked design for seamless and efficient operation. Engineered for precision, the FFP01-3C9-D24-V-7080-PHD is equipped with DC24V capabilities, ensuring reliable performance. The inclusion of a Wirebox further enhances the valve's functionality, making it a versatile and valuable component for your system. For added durability and longevity, this valve is outfitted with FPM Viton seals, guaranteeing a secure and leak-free operation. Enhance your D03 valve system with the FFP01-3C9-D24-V-7080-PHD, priced competitively at $115.00. Achieve optimal directional control with this high-quality valve, designed to meet your operational needs seamlessly.
More Information
| Product Name | FFP01-3C9-D24-V-7080-PHD |
|---|---|
| Brand | Patriot Hydraulics |
| A Position | P to A and B to T |
| B Position | P to B and A to T |
| Bolts | Metric bolts |
| Connector | Wirebox |
| Neutral Position | Tank port blocked |
| Spool Code | 3C9 |
| Size | D03 |
| Working Voltage | DC24V |
| Spool Configuration | 4W3P |
| Lead Time | Usually Ships Within: 1-3 Days feel free to contact us to confirm. |
| SKU | FFP01-3C9-D24-V-7080-PHD |
| Weight | 7.000000 |
